ROLL SCREEN

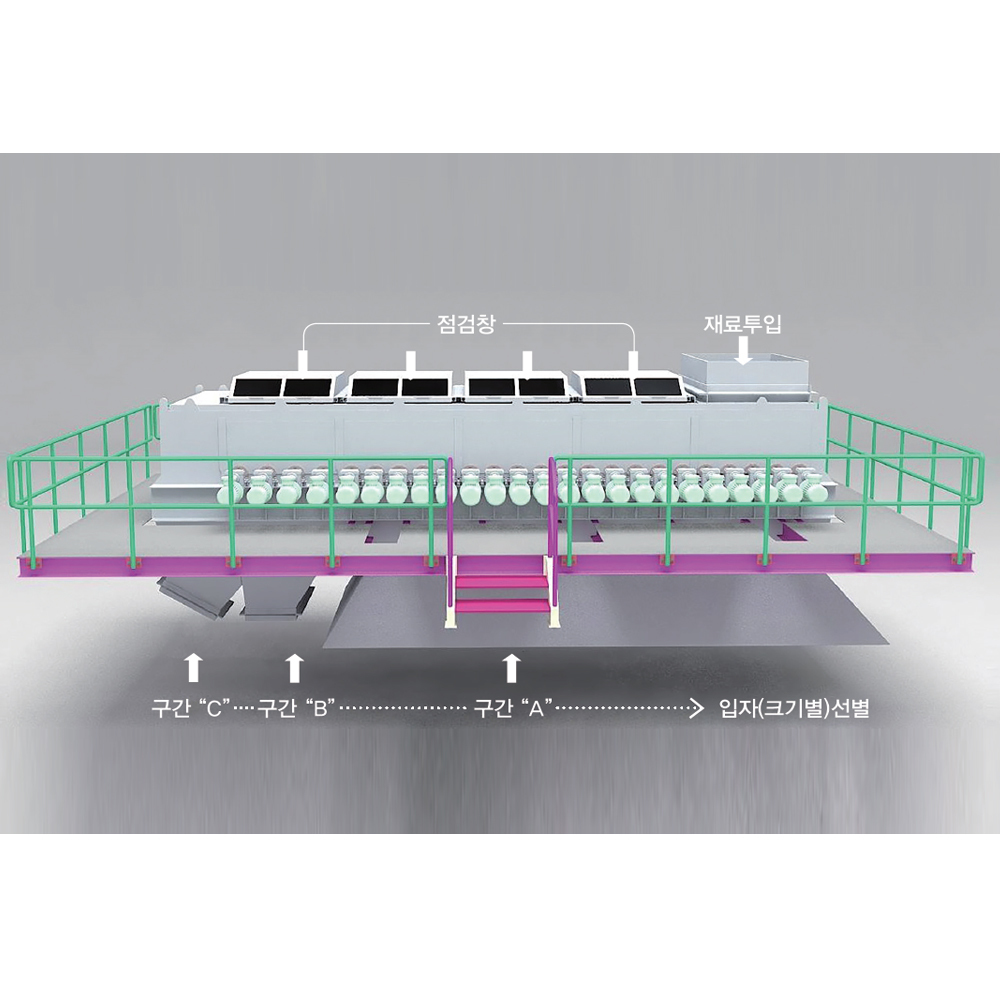

롤스크린 구성

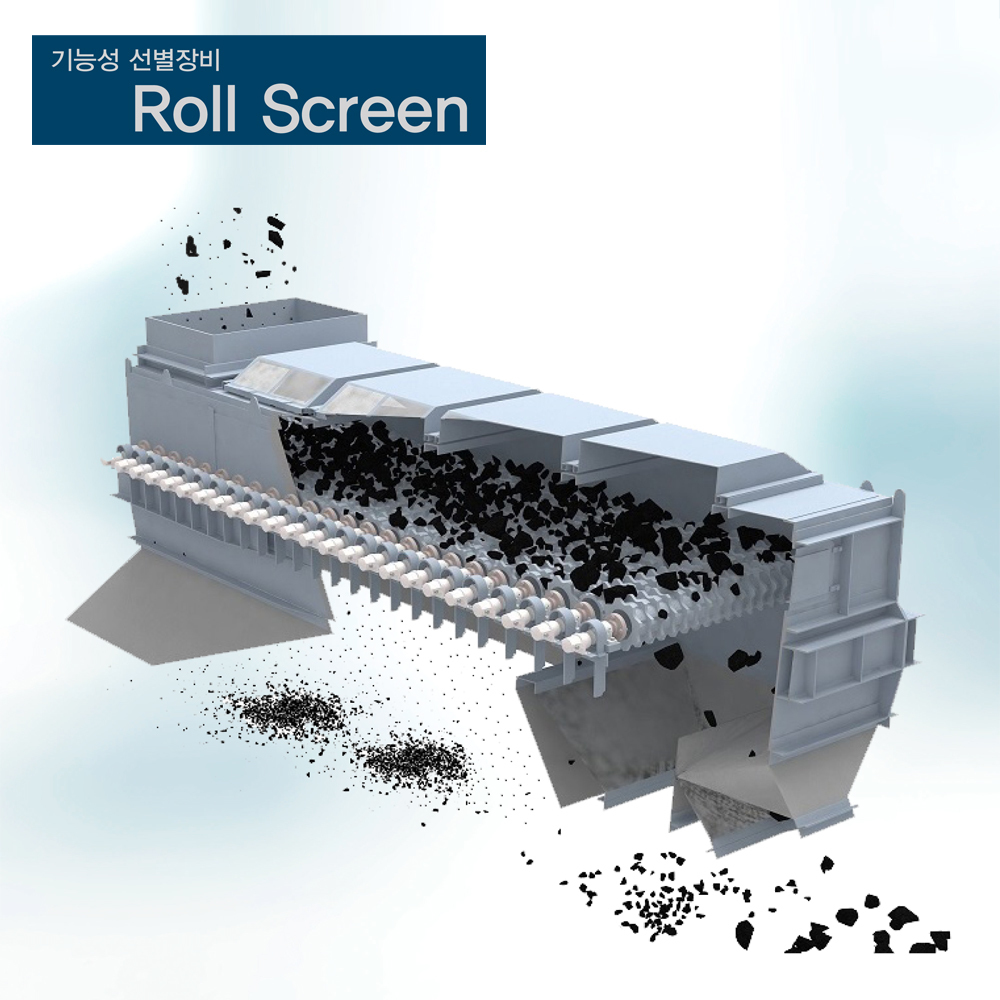

기능성 선별장비
광물선별장비의 기존의 방식은 메시망의 격자 크기를 이용해서 격자 크기보다 작은 물질을 걸러서 사용했으나,선별 작업시 소음 및 진동이 크고 분진 발생이 많고 메시망 눈메꿈 현상이 발생하는 불편이 있었다.

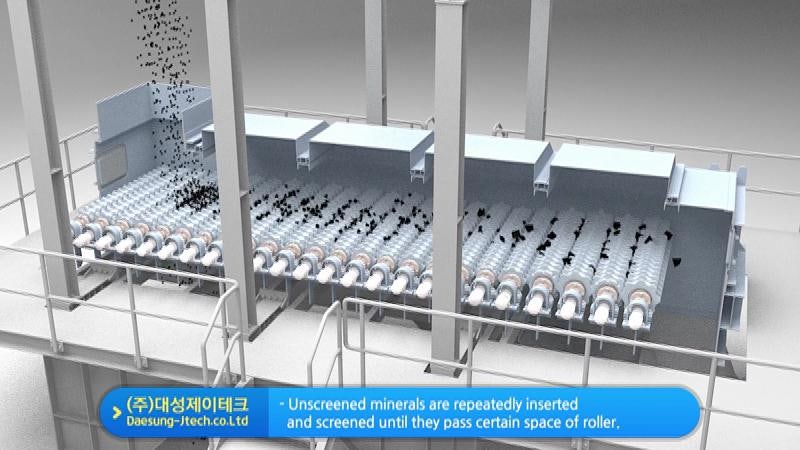

롤스크린 장비는 개별 치차 및 구동축 회전에 의한 선별방식이라 소음 및 진동을 획기적으로 감소시켰고 메시망을 사용하지 않아 눈메꿈에 의한 장비 정지 시간이 없어 장비 가동율을 향상시키는 장비이다.
특징
- 설치 공간과 용량(ton/hr)에 따른 선별장비 크기 조절이 가능.
- 모터감속기와 구동축이 커플링에 의한 직결형식이라 소음이 적고 구동력이 뛰어나다.
- 유지관리 및 운전이 쉽다.
- 부분적인 치차 교환이 가능해 유지 보수 비용이 적게든다.
- 프리미엄 모터감속기를 채용하여 높은 에너지 효율 및 긴 사용 수명 으로 운영 비용이 감소
Roll Screen System 특징
- 기존 VIBRATING SCREEN에 비해 크기는 적으면서 광물 선별 능력을 극대화 시킴.
- 기존 VIBRATING SCREEN의 결점인 내부에 WIRE MESH 가 없어 눈메꿈에 의한 유지보수 작업이 필요없다.
- 설치 공간과 용량(Ton/hr)에 따른 선별기 크기 조절이 가능하다.
- 기존 VIBRATING SCREEN은 소음 및 진동이 크고 분진 발생이 많아 작업 환경이 열악 했으나, 롤스크린은 개별 롤러 구동 및 베어링 지지 형식이라 구동에 의한 소음이 낮다. (무부하 운전시 85dB이하)
- 모터감속기와 롤러 샤프트가 커플링에 의한 직결 형식이라 구동 시 소음이 적고, 구동력이 뛰어나다.
- 터닝플레이트 및 스페이서가 오랜시간 사용해도 마모가 적어 유지보수 비용이 적게든다.
- 터닝샤프트와 터닝스페이서가 한몸체가 아닌 개별부품으로 제작 조립되어 있어 터닝스페이서 교체시, 스페이서만 교체해서 유지 보수비용이 적게든다.
- 부분적인 터닝플레이트 및 스페이서 교환이 가능해 유지보수 비용이 절감.
- 터닝샤프트 하부에 위치한 스크래퍼로 터닝플레이트 및 스페이서에 부착된 찌꺼기등을 제거 한다.
- 콤팩트하면서 힘의 구현력이 좋은 모터 및 감속기를 채용.
- 한 차원 높은 에너지 효율 및 긴 사용 수명으로 운영 비용이 감소한다.
롤스크린 모델

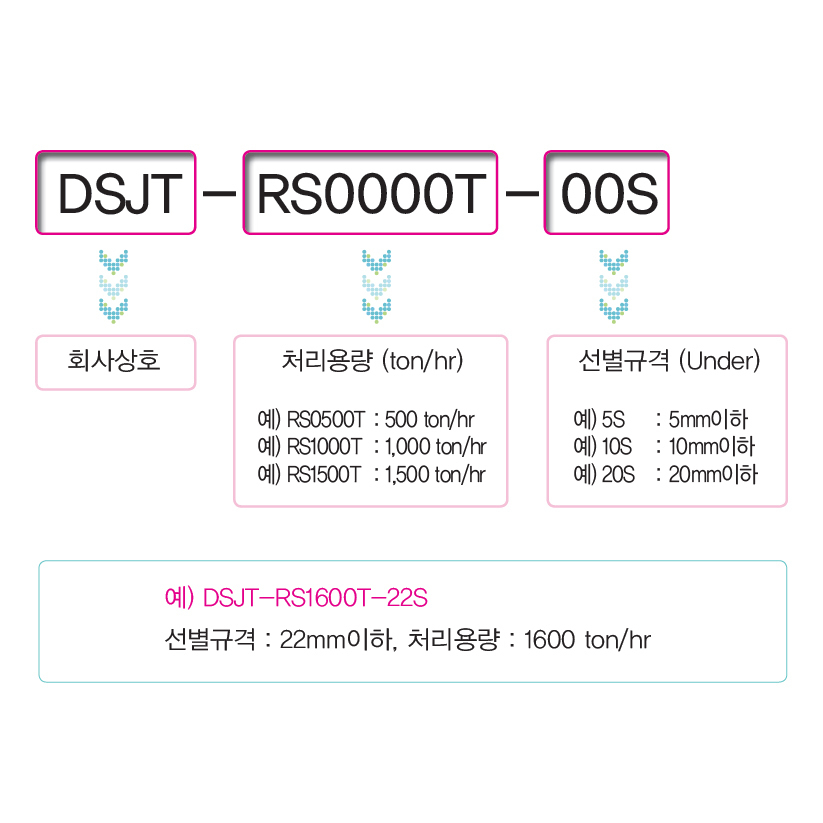

롤스크린 모델별 선별규격 및 처리용량
| 모 델 명 | “선별규격(mm)” | “처리용량(ton/hr)” | “크 기(axbxc)" |
| DSJT-RS0500T-10S | ~10이하 (함수율10%이하)" | ~ 500 | 고객사 현장 규격 |
| DSJT-RS1000T-10S | ~ 1000 | ||
| DSJT-RS1500T-10S | ~ 1,500 | ||
| DSJT-RS2000T-10S | ~ 2,000 | ||
| DSJT-RS2500T-10S | ~ 2,500 | ||
| DSJT-RS3000T-10S | ~ 3,000 | ||
| DSJT-RS0500T-20S | ~20이하 | ~ 500 | |
| DSJT-RS1000T-20S | ~ 1000 | ||
| DSJT-RS1500T-20S | ~ 1,500 | ||
| DSJT-RS2000T-20S | ~ 2,000 | ||
| DSJT-RS2500T-20S | ~ 2,500 | ||
| DSJT-RS3000T-20S | ~ 3,000 | ||
| DSJT-RS0500T-30S | ~30이하 | ~ 500 | |
| DSJT-RS1000T-30S | ~ 1000 | ||
| DSJT-RS1500T-30S | ~ 1,500 | ||
| DSJT-RS2000T-30S | ~ 2,000 | ||
| DSJT-RS2500T-30S | ~ 2,500 | ||
| DSJT-RS3000T-30S | ~ 3,000 | ||
| DSJT-RS0500T-35S | ~35이하 | ~ 500 | |
| DSJT-RS1000T-35S | ~ 1000 | ||
| DSJT-RS1500T-35S | ~ 1,500 | ||
| DSJT-RS2000T-35S | ~ 2,000 | ||
| DSJT-RS2500T-35S | ~ 2,500 | ||
| DSJT-RS3000T-35S | ~ 3,000 | ||
| DSJT-RS0500T-40S | ~40이하 | ~ 500 | |
| DSJT-RS1000T-40S | ~ 1000 | ||
| DSJT-RS1500T-40S | ~ 1,500 | ||
| DSJT-RS2000T-40S | ~ 2,000 | ||
| DSJT-RS2500T-40S | ~ 2,500 | ||
| DSJT-RS3000T-40S | ~ 3,000 | ||
| DSJT-RS0500T-45S | ~45이하 (함수율10%이하) | ~ 500 | |
| DSJT-RS1000T-45S | ~ 1000 | ||
| DSJT-RS1500T-45S | ~ 1,500 | ||
| DSJT-RS2000T-45S | ~ 2,000 | ||
| DSJT-RS2500T-45S | ~ 2,500 | ||
| DSJT-RS3000T-45S | ~ 3,000 | ||
| DSJT-RS0500T-50S | ~50이하 | ~ 500 | |
| DSJT-RS1000T-50S | ~ 1000 | ||
| DSJT-RS1500T-50S | ~ 1,500 | ||
| DSJT-RS2000T-50S | ~ 2,000 | ||
| DSJT-RS2500T-50S | ~ 2,500 | ||
| DSJT-RS3000T-50S | ~ 3,000 |
※기타 선별규격, 선별용량, 롤스크린 크기등 주요 사양 고객사 요청 주문제작
납품실적
Crusher일체형 Roll Screen [석탄 선별장비]
한국남부발전(주) 삼척발전본부
- 처리용량 : 1600 ton/hr 선별크기 : 22mm Under.
- 프리 크라샤 장착 1차로 150mm 이상 석탄 파쇄.
- 더블크라샤 장착 150mm 이하의 석탄을 파쇄 일정크기 이하는 크라샤로 이송 그 외는 괴탄장으로 이송
Crusher일체형 Roll Screen [석탄 선별장비]
한국남부발전(주) 삼척발전본부
- 처리용량 : 240 ton/hr 선별크기 : 12mm Under.
- 선별 대상 : 석탄, 우드 펠릿
Roll Screen [석탄 선별장비]
한국남동발전 영흥발전본부
- 처리용량 : 1000 ton/hr 선별크기 : 50mm Under.
- 50mm초과는 괴탄 처리
- 선별 대상 : 석탄
Roll Screen [석탄 선별장비]
한국중부발전 보령발전본부
- 처리용량 : 1600 ton/hr 선별크기 : 1차 50mm Under. 2차 100mm Under
- 100mm 초과는 괴탄 처리
- 선별 대상 : 석탄
EDM(입자) Analysis
Hey! Recently we were working on a project for ..
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
A new project is an opportunity to create something unique.
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
We look forward to working with you on your next project
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
Style Tiles are always a good option to show work in progress!
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
You can check the attachment for a full view..
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
This is a proposal to add value to a crowdfunding listing page
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
석회석 선별작업 시물레이션
Hey! Recently we were working on a project for ..
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
A new project is an opportunity to create something unique.
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
We look forward to working with you on your next project
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
Style Tiles are always a good option to show work in progress!
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
You can check the attachment for a full view..
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
This is a proposal to add value to a crowdfunding listing page
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
벨트컨베어를 타고 오는
Coal을 좌우로 분배시
Coal의 흐름을 분석하는
시물레이션
Hey! Recently we were working on a project for ..
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
A new project is an opportunity to create something unique.
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
We look forward to working with you on your next project
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
Style Tiles are always a good option to show work in progress!
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
You can check the attachment for a full view..
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
This is a proposal to add value to a crowdfunding listing page
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
우드펠릿 선별작업
시물레이션
Hey! Recently we were working on a project for ..
We design and build digital products people enjoy using...
Hey! Recently we were working on a project for ..We design and build digital products people enjoy using...
A new project is an opportunity to create something unique.
We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
A new project is an opportunity to create something unique.We are a Creative Digital Agency based in Buenos Aires, Argentina. We take pride in designing and building...
We look forward to working with you on your next project
As an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
We look forward to working with you on your next projectAs an interdisciplinary agile team, our production process is flexible, collaborative, and adapts to each client’s needs
Style Tiles are always a good option to show work in progress!
We are working on the UX/UI design for a large hotel owners and hospitality management company.
Style Tiles are always a good option to show work in progress!We are working on the UX/UI design for a large hotel owners and hospitality management company.
You can check the attachment for a full view..
More shots with final designs coming soon.
You can check the attachment for a full view..More shots with final designs coming soon.
This is a proposal to add value to a crowdfunding listing page
we streamline the process without having to make multiple mockups.
This is a proposal to add value to a crowdfunding listing pagewe streamline the process without having to make multiple mockups.
더블크라샤 석탄
분쇄 시물레이션
관련 동영상
DSJT1712-RS3000T-100S99F
roll screen ,roller screen coal&mineral separator-Rocky dem simulation-daesung-jtech

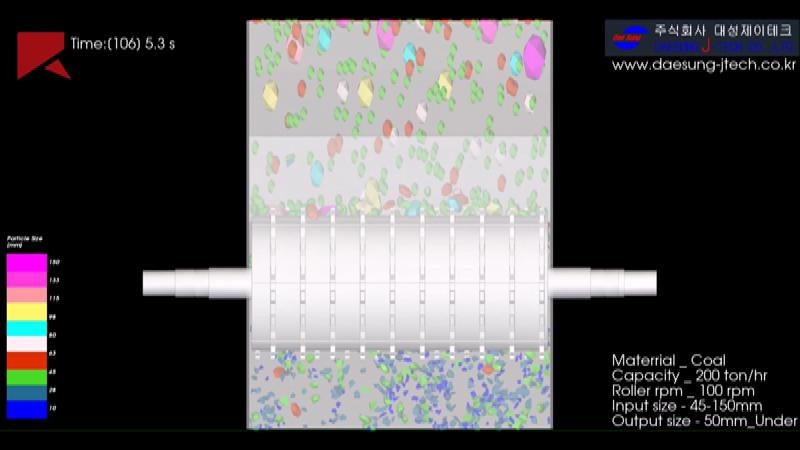

Rocky DEM was introduced to analyze the efficiency of the sorter.
The results of the analysis were satisfactory, and we were able to analyze all the equipment before designing and make reasonable work.
선별기의 효율을 분석하기 위해 Rocky DEM을 도입하였습니다.
분석결과 만족할만한 결과가 도출되었고,모든 장비를 설계하기전 분석하여 합리적인 작업을 진행할수 있게 되었습니다.

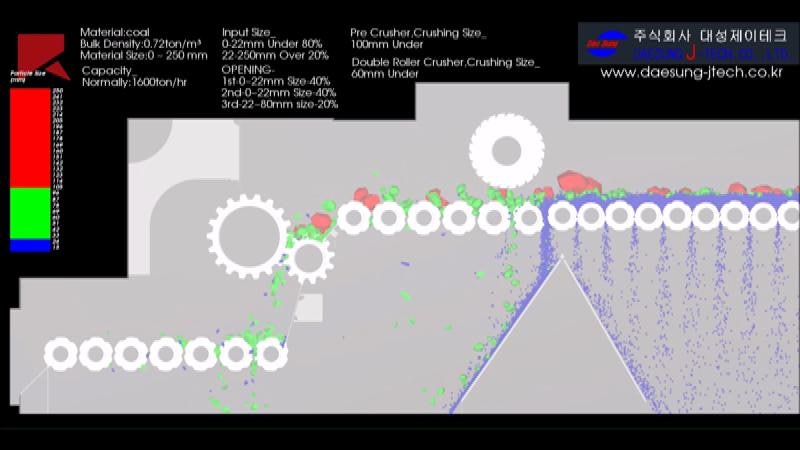

SJT-RSC-1600T-22S70F
Roll screen,Roller screen,Crusher, all-in-one type-Rocky DEM simulation-daesung-jtech
It is analyzed before production and installation.
Installed on actual thermal power plant, 97% or more agreement with analysis result.
생산 및 설치 전에 해석됩니다.
실제 화력 발전소에 설치되어 해석 결과와 97 % 이상 일치.

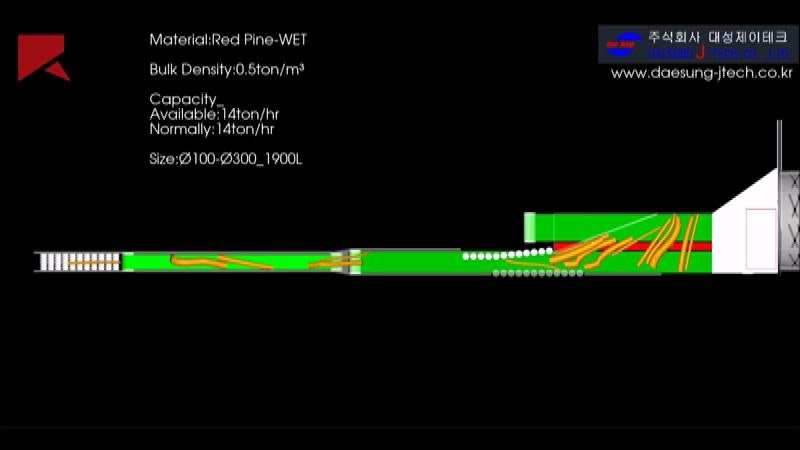

Unattended_wood_alignment_device
Unattended wood alignment device-Rocky DEM simulation-daesung-jtech
A rotating body that stably supplies the pine from a bark-removing machine to the crusher.
나무 껍질 제거 기계에서 소나무를 분쇄기로 안정적으로 공급하는 회전체.
SCS-SIMULATION
Samcheok Power Plant Coal Dispenser Improvement-Rocky DEM simulation-daesung-jtech
I used Rocky DEM to simulate the improvement of the coal distribution on conveyors at Samcheok Thermal Power Plant.
Rocky DEM을 사용하여 삼척화력발전소의 컨베이어의 석탄분배 개선을 시물레이션했습니다.
DSJT-DRC-150F50S-200T
Double Roll Crusher,Roller Crusher-Rocky DEM simulation-daesung-jtech
Double roll crusher was analyzed using Rocky DEM.
All equipment before the design is analyzed and based on the results.
더블 롤 크러셔는 Rocky DEM을 사용하여 분석되었습니다.
설계를 하기 전에 모든 장비를 분석하고 결과를 기반으로합니다.
Jaw Crusher-Rocky DEM simulation-daesung-jtech

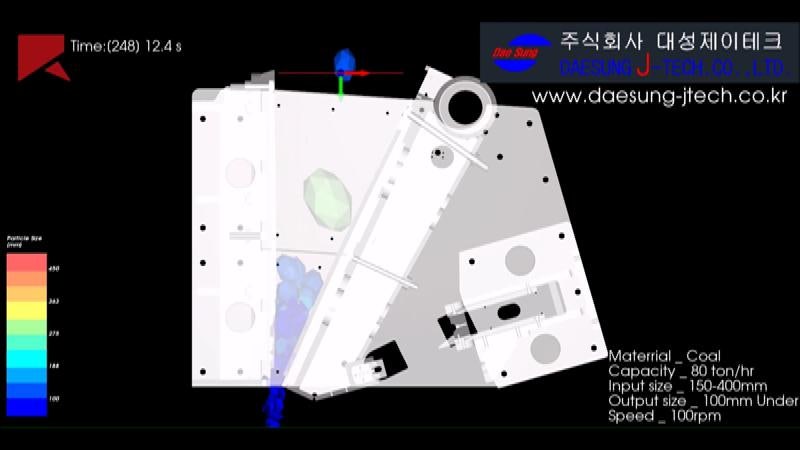

I analyzed the jaw crusher.
I checked the results and found that the data was fairly accurate.
조 크러셔를 해석했다.
결과를 확인한 결과 데이터가 상당히 정확하다는 것을 알았습니다.

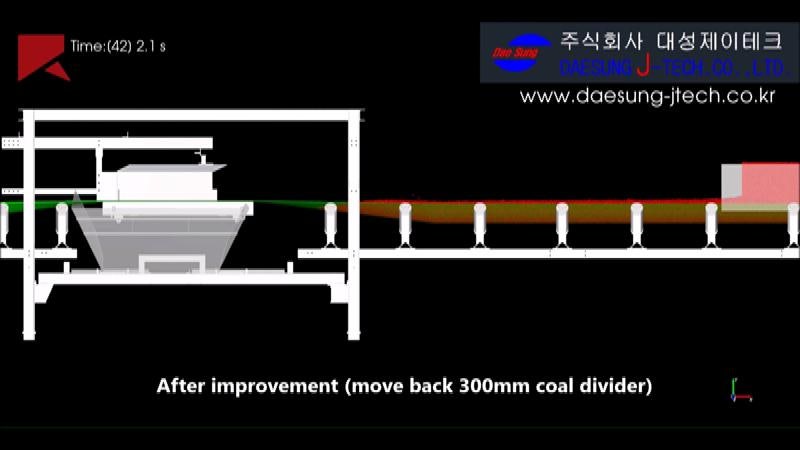

Change transfer chute flow-Rocky DEM sim
The existing transfer chute was biased to one side, and the receiving machine continued to have problems.
So we tried to change the flow of the transfer chute.
The size, position, and angle of the plate to change the flow were analyzed and designed using Rocky DEM.
It was improved three months ago as designed, and no problems have occurred to date.
기존에 설치된 이송 슈트가 한쪽으로 치우치는 현상이 발생하여 공급받는 기계에 계속 문제가 발생하였다.
그래서 이송 슈트의 흐름을 변경하여 개선하고자 하였다.
흐름을 바꾸어줄 판의 크기,위치,각도를 Rocky DEM을 사용하여 분석하고 설계하였다.
설계한대로 3개월전 개선 하였고 현재까지 어떤 문제도 발생하지 않았다.
Roll Screen 적용 분야

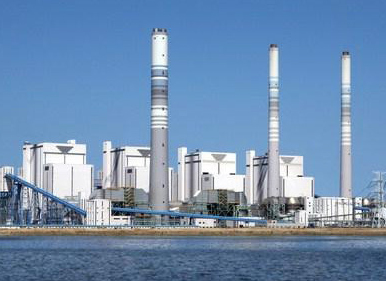

화력발전소

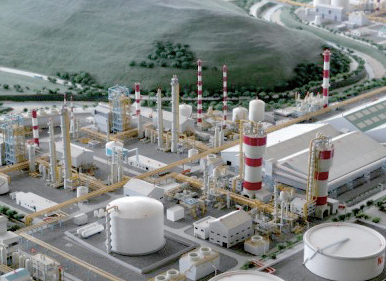

제철소

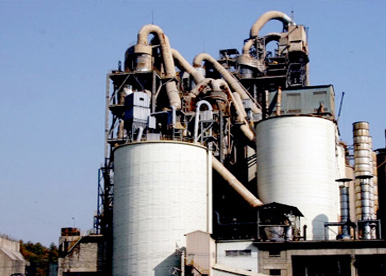

시멘트공장

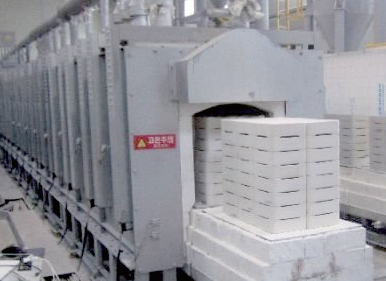

세라믹공장
석재광산
건설폐기물
비료공장
우드펠릿공장
